MAG808 Digital Audio Matrix System Solution for Small Exhibition Halls & Museums
I. Solution Overview
Small exhibition halls and museums often need to enhance the exhibition experience through sound to better guide visitors and provide information. The choice of audio system is crucial, requiring high-quality audio output and flexible control and management capabilities. This solution, centered on the digital audio matrix system, is designed to meet the broadcasting and audio needs of small exhibition halls or museums.
Project Requirements
- Visitor Experience Requirements: Different exhibition halls/zones can play dedicated background music or commentary independently without interference or audio crosstalk, ensuring an immersive viewing experience.
- Operational Requirements: Support scheduled broadcasting on/off, remote paging announcements for staff, and independent volume adjustment for different zones.
- Safety Requirements: Integrate with the fire alarm system to enable mandatory full-zone emergency evacuation broadcasting during emergencies.
- Sound Quality Requirements: Deliver highly natural vocal reproduction with clear speech intelligibility for audio guides and announcements, while providing rich and layered background music that matches the quiet and elegant atmosphere of the venue.
- Operation & Maintenance Requirements: Support simplified cabling and remote control to reduce operational complexity and improve venue management efficiency
II. MAG808 Solution Design for Small Exhibition Halls & Museums

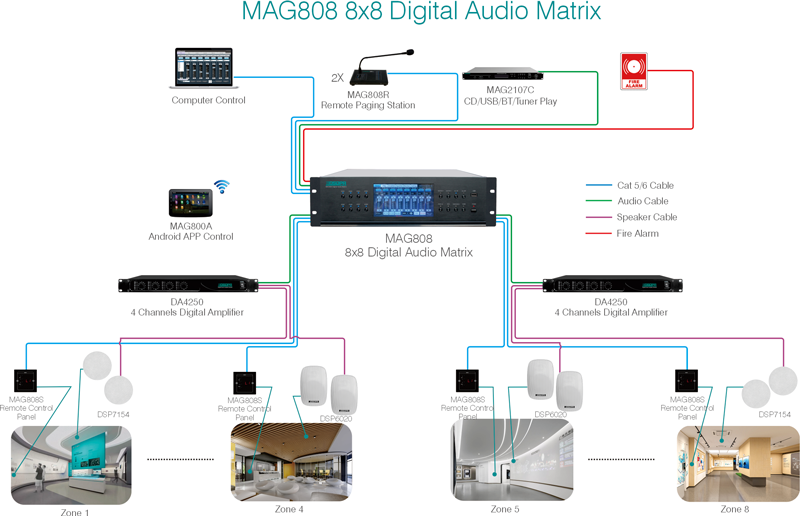

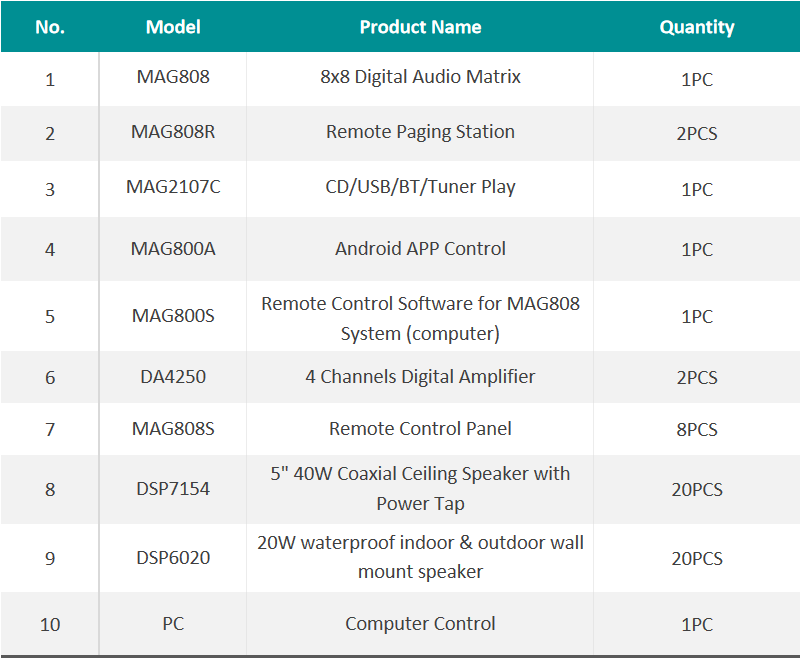

System Connection Diagram & Product List

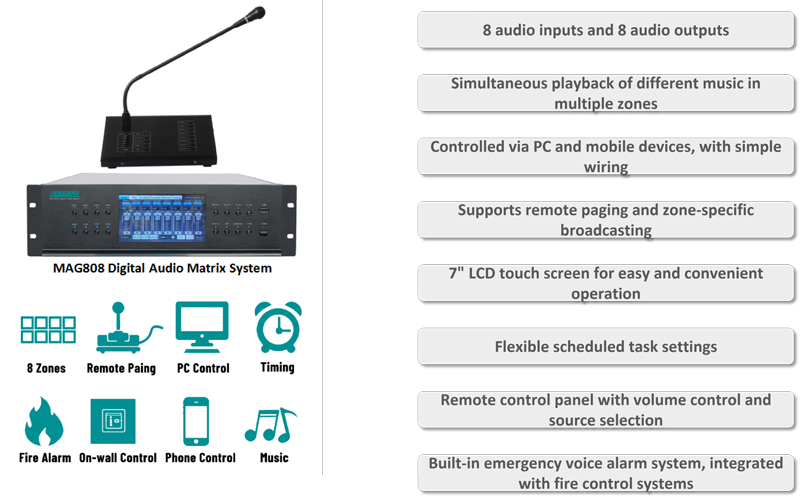

III. Key Features of the MAG808 Audio Matrix System
IV. MAG808 System Products Introduction

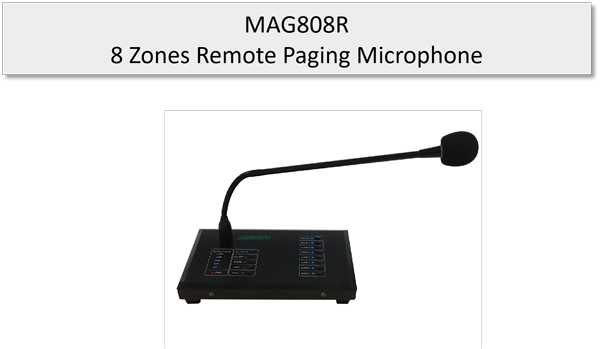

Features:
- 8 zones control
- Priority of each unit can be set (with 4 different levels)
- Clear signal level indication
- Built-in 2 types of chime signal for paging
- Adjustable volume of MIC and chime
- RJ45 interface, support the cascade linkage

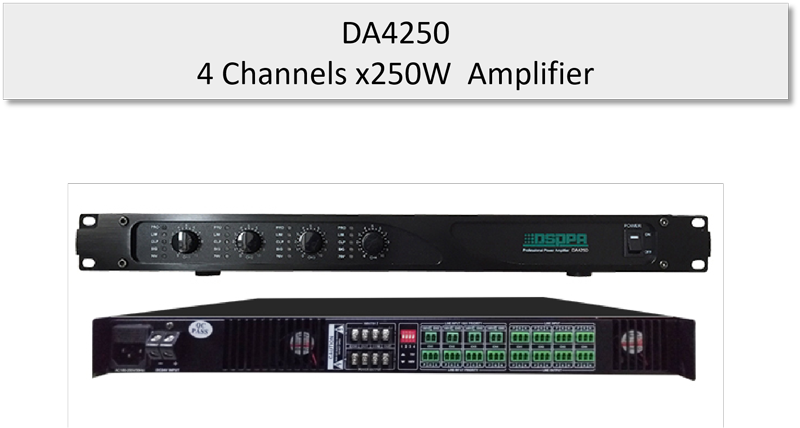

Features:
- 4 channel amplifiers within one 1U & 19" case
- Four audio inputs and Four channel speaker outputs
- 5-unit LED for Status
- 70V/100V output switcher, you can select the speaker output for each channel.
- Industrial design for audio project,long term & stable use
- The amplifier will turn into DC power mode when AC power fails. Smoothly change without shutting down.
V. MAG808 System Introductions

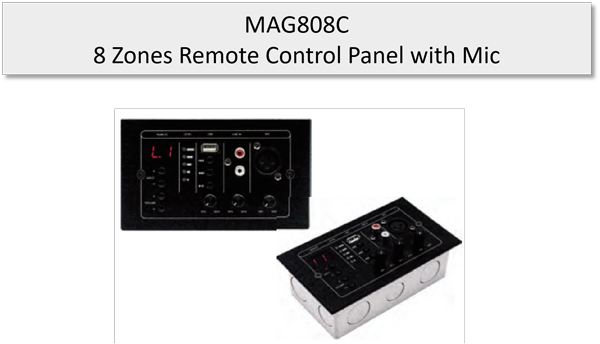

Features:
- RJ45 port power and control interface
- Balanced audio input and output
- Clear audio signal level indicator
- Independent volume control and audio source selection for each zone
- MP3 via USB input with independent volume control
- 1 line input and 1 MIC input with independent volume control
- Bottom box size: 144x80x45mm

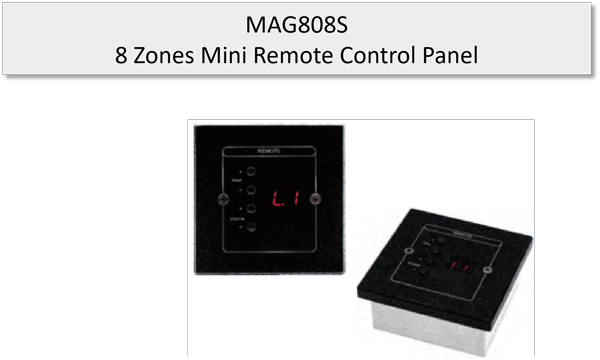

Features:
- RJ45 port power and control interface
- Balanced audio input and output
- Independent volume control and audio source selection for each zone
- 86 case for in wall installation
- Bottom box size: 86x86x33mm
VI. Product Application – DSP7154 Series High-Fidelity Coaxial Ceiling Speaker
DSP7154 Series High-Fidelity Coaxial Ceiling Speaker

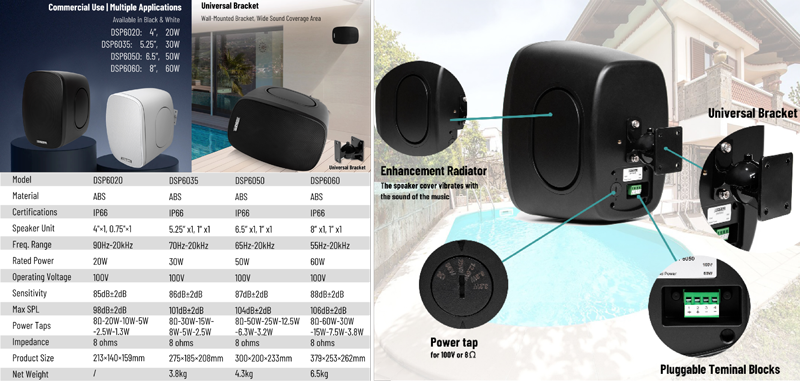

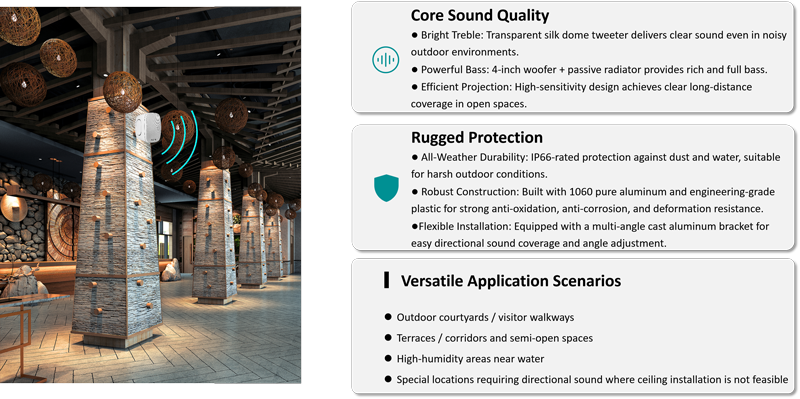

VII. Product Application – DSP6020 All-Weather Wall-Mounted Speaker
DSP6020 All-Weather Wall-Mounted Speaker
