MAG6812F / MAG6825F / MAG6835F Four-Channel Network Digital Amplifiers Solution for Hospitals

I. Solution Overview

Modern hospitals are continuously pursuing intelligent and information-driven management models, which place higher demands on the stability and performance of audio systems. Traditional sound systems often suffer from issues such as a large number of devices, complex connections, cluttered cabling, and difficult maintenance. The four-channel network digital amplifiers based on the TCP/IP protocol effectively address these challenges by providing a high-performance and highly reliable audio solution, making them suitable for a wide range of hospital audio applications.

Project Requirements

Secure and Reliable Audio Transmission: Ensures real-time audio signal delivery with high integrity and stability.
Flexible System Scalability: Allows equipment to be added or expanded at any time to meet the evolving needs of hospitals.
Convenient Fault Detection and Automatic Switching: Enables real-time monitoring of network line status to ensure stable and continuous operation of the audio system.
Centralized Control and Management: Provides an intuitive management interface, allowing hospital staff to easily operate and maintain the system.

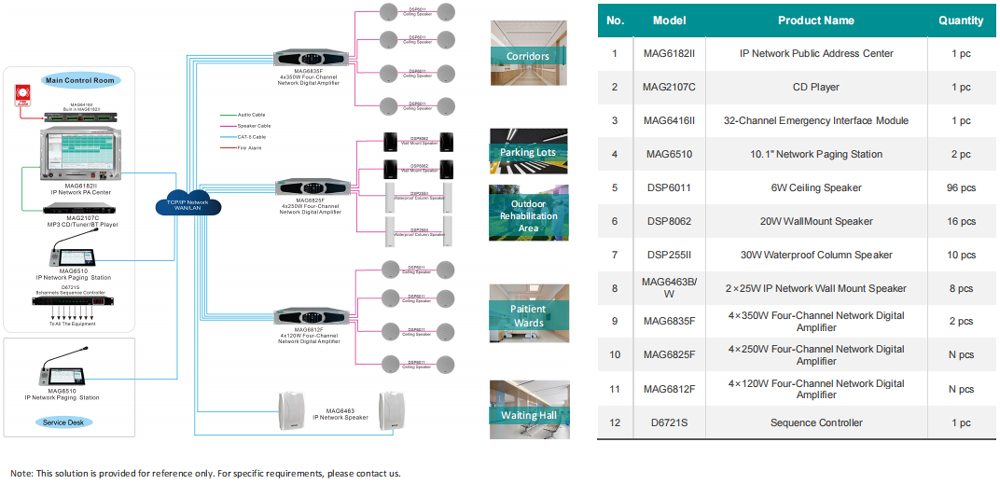

II. Public Address Solution Configuration for Hospitals

III. Solution Configuration Description

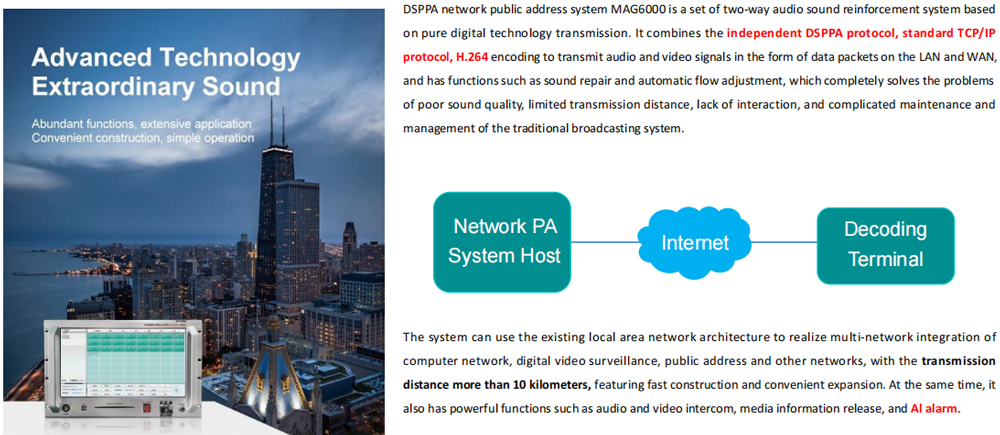

IV. What is Network PA System MAG6000?

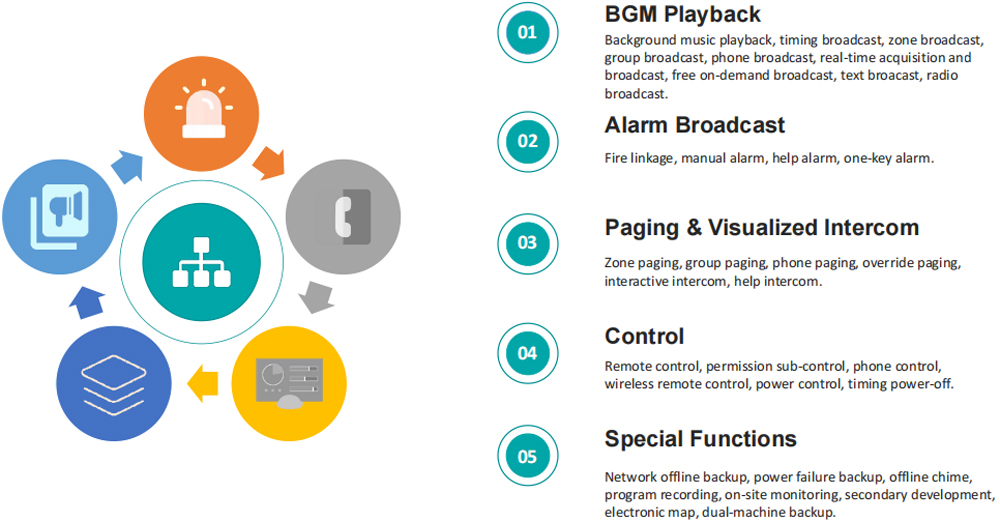

V. MAG6000 System Functions

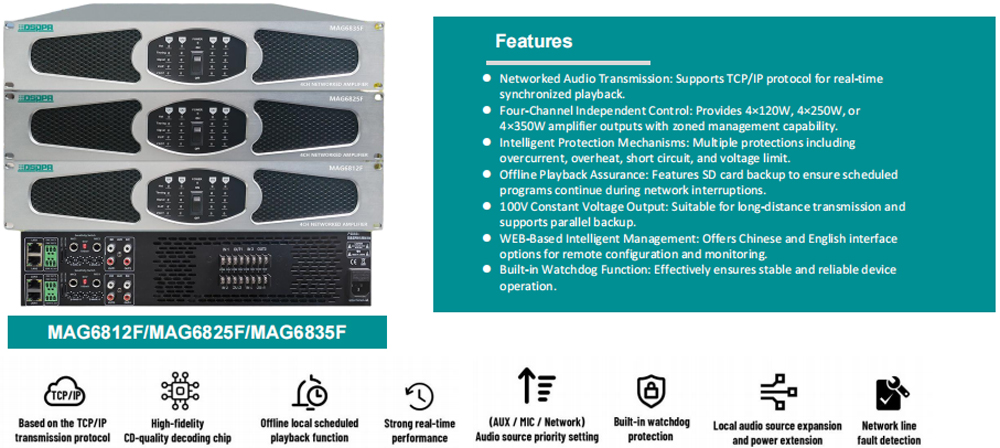

VI. MAG6812F Series Four-Channel Network Digital Amplifiers

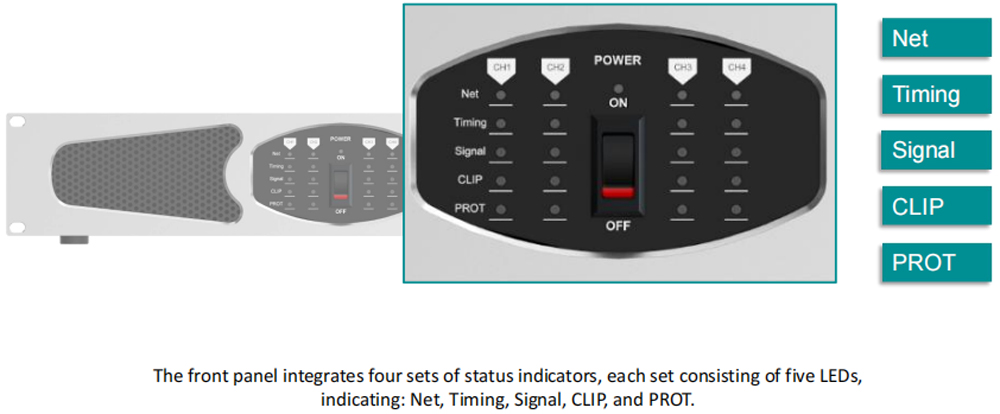

Front Panel Description

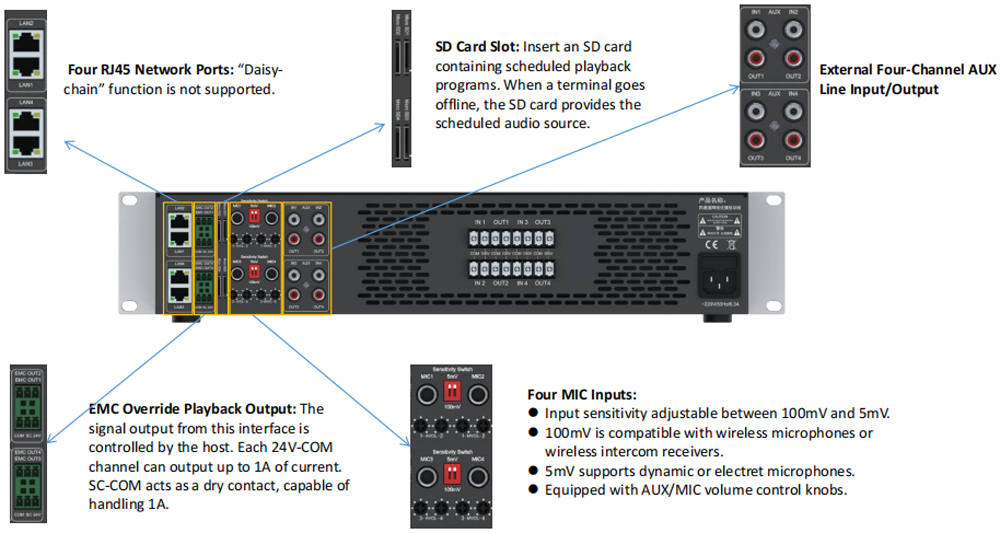

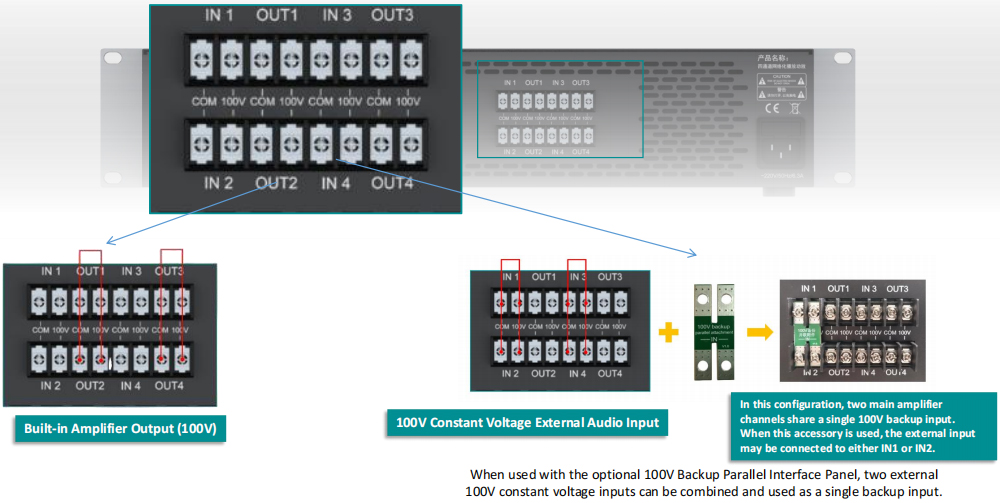

Rear Panel Description

Supports 100V Constant Voltage Output: Two pins of the 8-position 7.62mm barrier terminal block are used for the 100V constant voltage output.
Supports 100V Constant Voltage Backup Function: An additional two pins of the 8-position 7.62mm barrier terminal block are reserved for 100V backup input.
